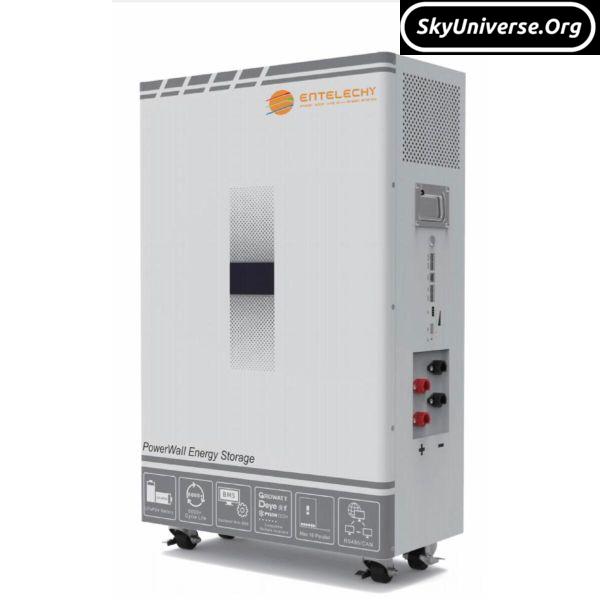

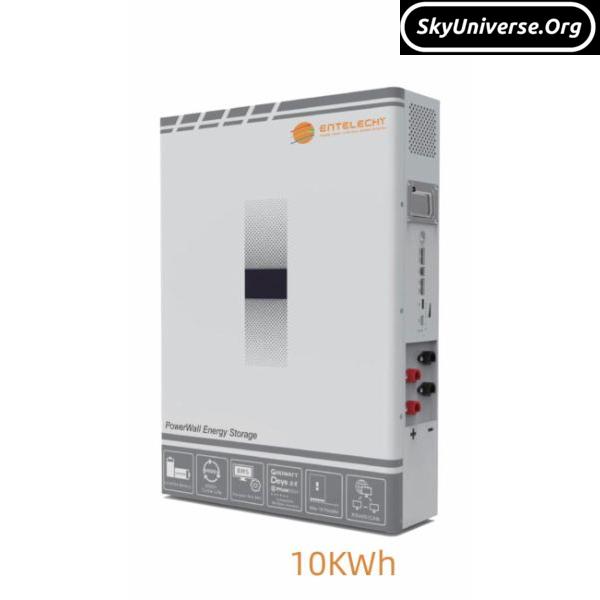

10Kwhr LiFe po4 battery Rated voltage;51.2v:
Rated capacity :200AH
Maximum charging current:200A communication method:RS485/CAN/RS232.
NW:85.5kg
Dimensions:535×160×750mm.
CONNECTION:
connecting the solar panel to the combiner box;
Connecting the inverter with built-in controller;
Converting solar energy into DC to charge the powerwall battery;
Then powerwall battery provides power to the inverter ;
The inverter converts the DC into AC and finally uses it for the alternating load
